Json configuration fails validation

SAML for ASP.NET Core
1

Hi,
working with configurations, I wanted to validate the following saml.json

{
  "SAML": {
    "$schema": "https://www.componentspace.com/schemas/saml-config-schema-v1.0.json",
    "Configurations": [
      {
        "LocalIdentityProviderConfiguration": {
          "Name": "https://ExampleIdentityProvider",
          "Description": "Example Identity Provider",
          "SingleSignOnServiceUrl": "https://localhost:44313/SAML/SingleSignOnService",
          "LocalCertificates": [
            {
              "FileName": "certificates/idp.pfx",
              "Password": "password"
            }
          ]
        },
        "PartnerServiceProviderConfigurations": [
          {
            "Name": "https://ExampleServiceProvider",
            "Description": "Example Service Provider",
            "AssertionConsumerServiceUrl": "https://localhost:44360/SAML/AssertionConsumerService",
            "SingleLogoutServiceUrl": "https://localhost:44360/SAML/SingleLogoutService",
            "PartnerCertificates": [
              {
                "FileName": "certificates/sp.cer"
              }
            ]
          }
        ]
      }
    ]
  }
}

using the json schema componentspace.com/schemas/saml-config-schema-v1.0.json.

But it fails.
I also used JSON Schema Validator - Newtonsoft to investigate and I found out that the problem is in the last lines of the schema

"required": [ "Configurations" ]

If i remove them, validation works.
But my saml.json contains the property Configuration.

What am I doing wrong?

Thank you
Fabio

2

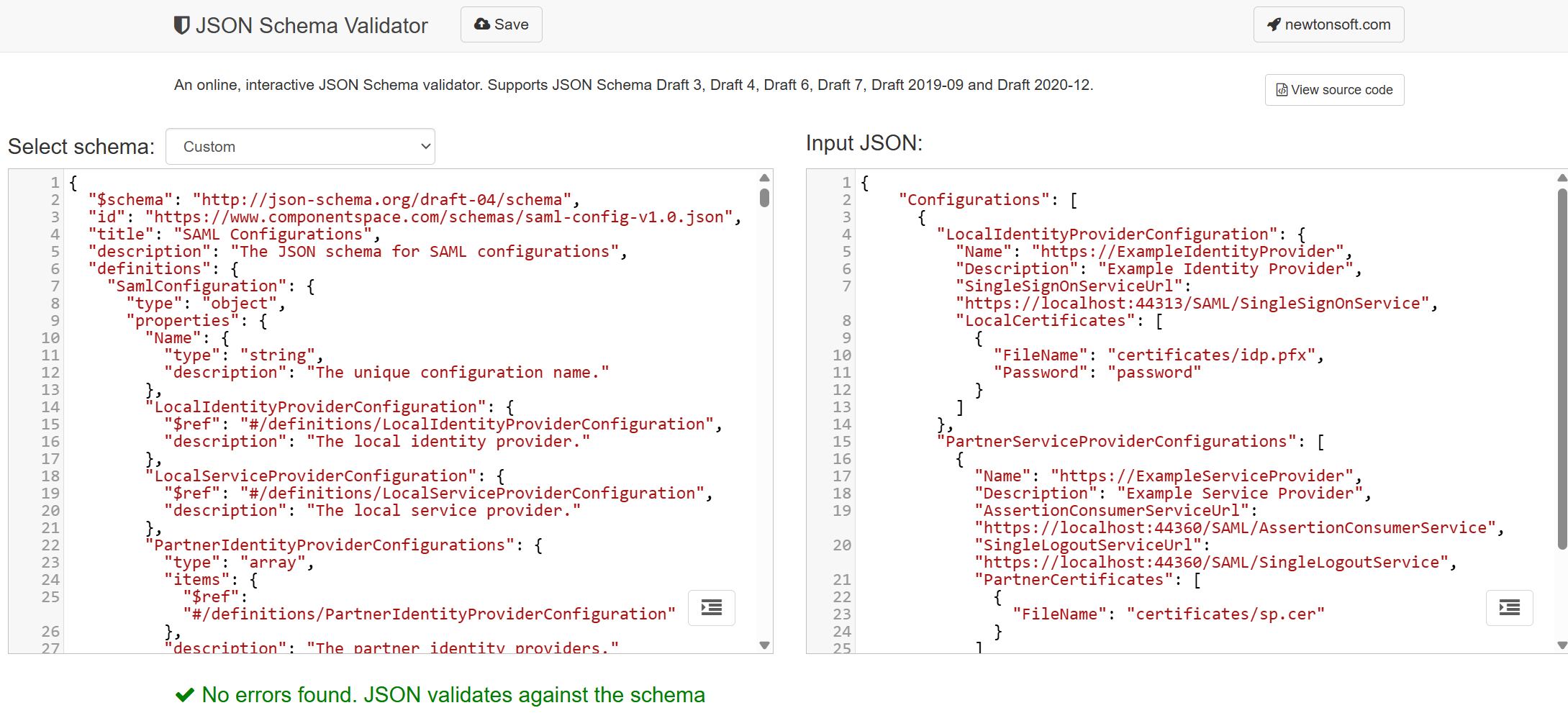

I wasn’t able to reproduce the issue. I used the same schema validator and copy/pasted the exact same SAML configuration you posted. It reported “No errors found. JSON validates against the schema”.

image2188×1005 234 KB

3

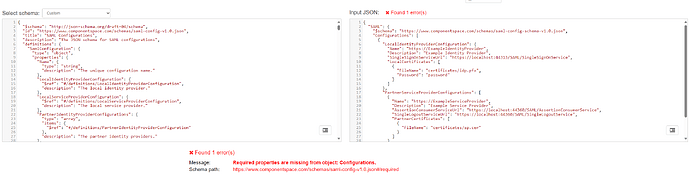

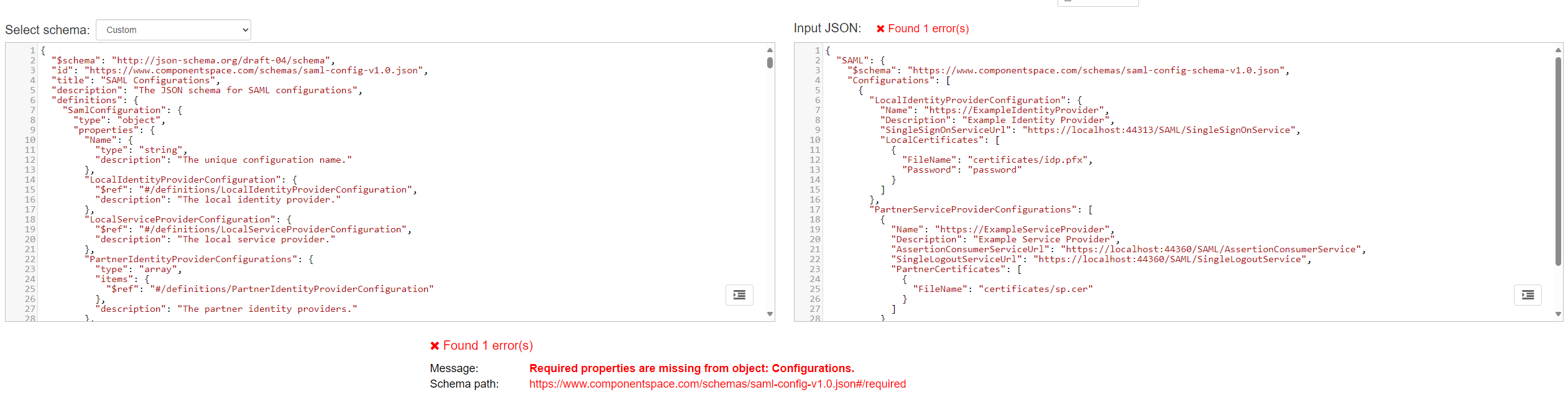

Here’s what I get if I copy&paste the schema

image2522×660 73 KB

And It’s exactly the error I get when I try to validate the JSON in my application with the method below:

static bool ValidateJsonString(string jsonFilePath, string jsonSchemaData)
      {
          string jsonData = File.ReadAllText(jsonFilePath);

          JSchema schema = JSchema.Parse(jsonSchemaData);
          JObject json = JObject.Parse(jsonData);

          bool isValid = json.IsValid(schema, out IList<string> errors);

          if (!isValid)
          {
              Console.WriteLine("- JSON validation errors:");
              foreach (string error in errors)
              {
                  Console.WriteLine($"   - {error}");
              }
          }

          return isValid;
      }

Thank you
Fabio

4

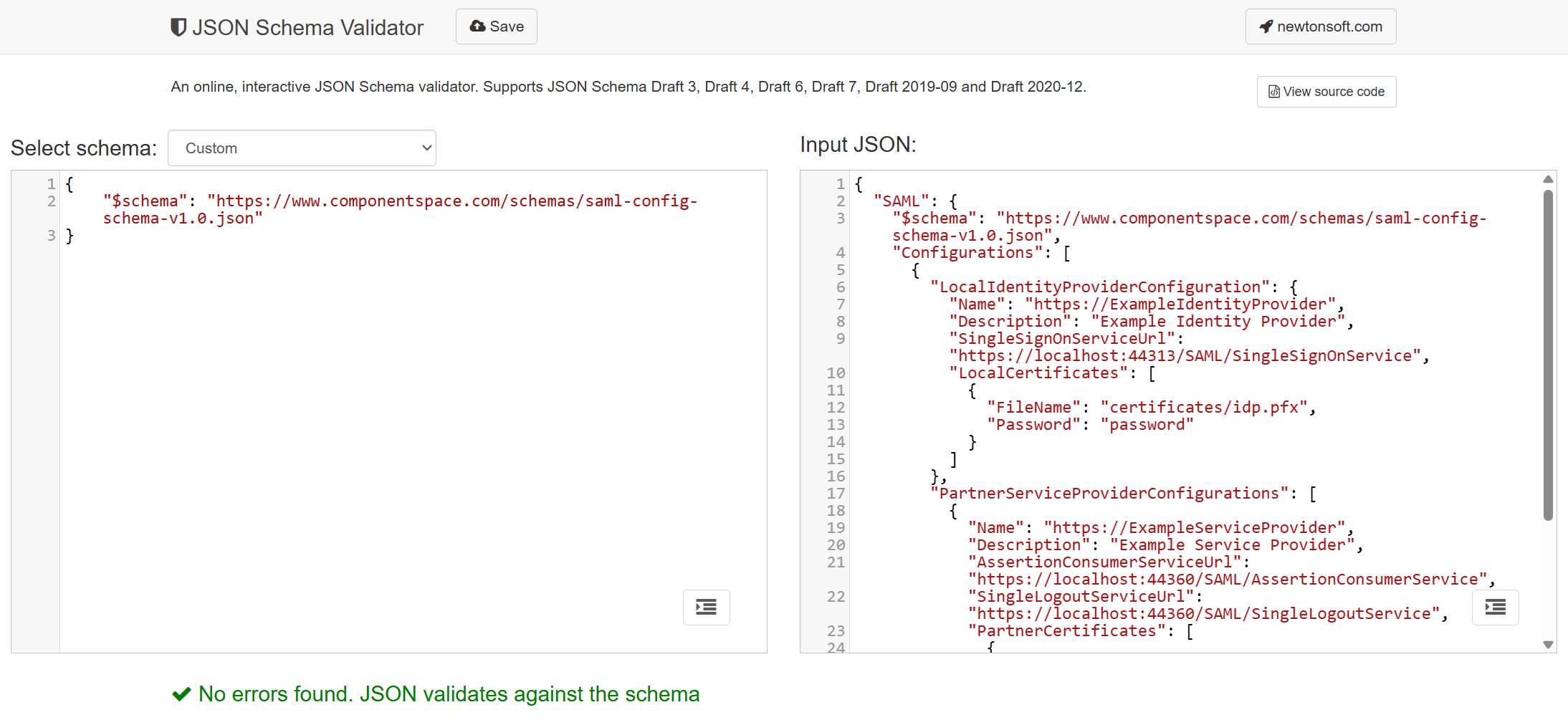

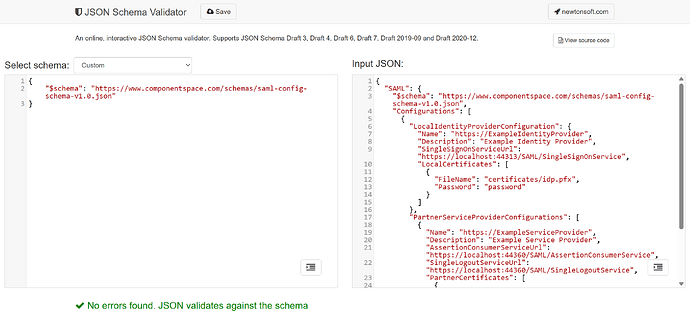

The { "SAML": {}} object isn’t specified in the schema.

The schema should be applied to the { "Configurations": []} object.

By convention we use the “SAML” object to clearly identify the SAML configuration when it’s part of appsettings.json.

image2179×991 329 KB

5

Ok thank you now It works!

Since we are moving from ASP.NET to netcore, I’m in the need to convert ALL the saml.config from xml to JSON: do you have any tool, snippet or example to do that?

6

I’m afraid not although it shouldn’t be too hard to write some code to do this.
